YS-138-UL ANSI Heavy Duty Electric Strike — Adjustable Fail Safe / Fail Secure, UL Listed

ANSI-standard heavy duty electric strike with signal output and field-adjustable operating mode — set it fail safe (NC) or fail secure (NO) to match the opening. UL 294 & UL 1034 listed, with a stainless keeper and painted-steel faceplate for ANSI cylindrical locksets on wood, metal and PVC doors.

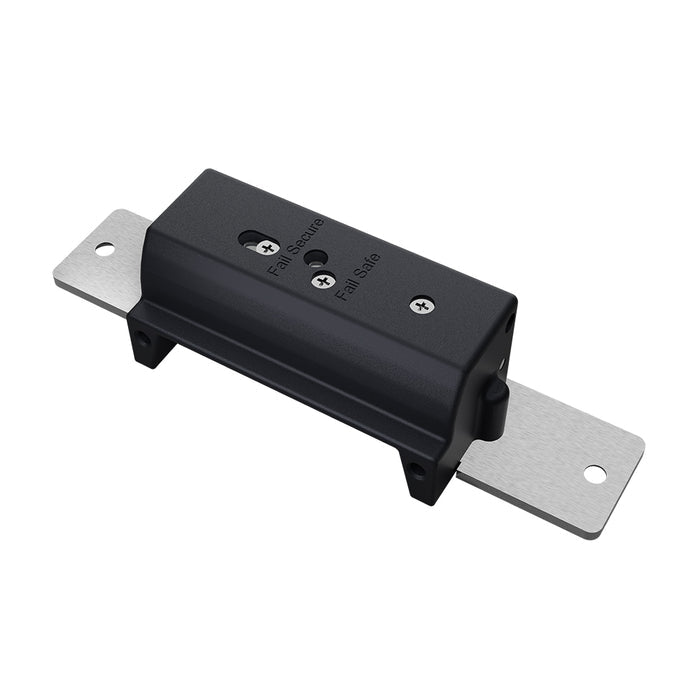

• Mode: Adjustable: Fail Safe (NC) or Fail Secure (NO)
• UL ratings: Static 1,000 lbf (4448 N) · dynamic 50 ft-lbf (68 J) · endurance 250,000 cycles
• Signal output: Door-status dry contacts NO/NC/COM
• Voltage / current: DC 12 V · 280 mA ±10%
• Lock size: 165 × 43 × 35 mm

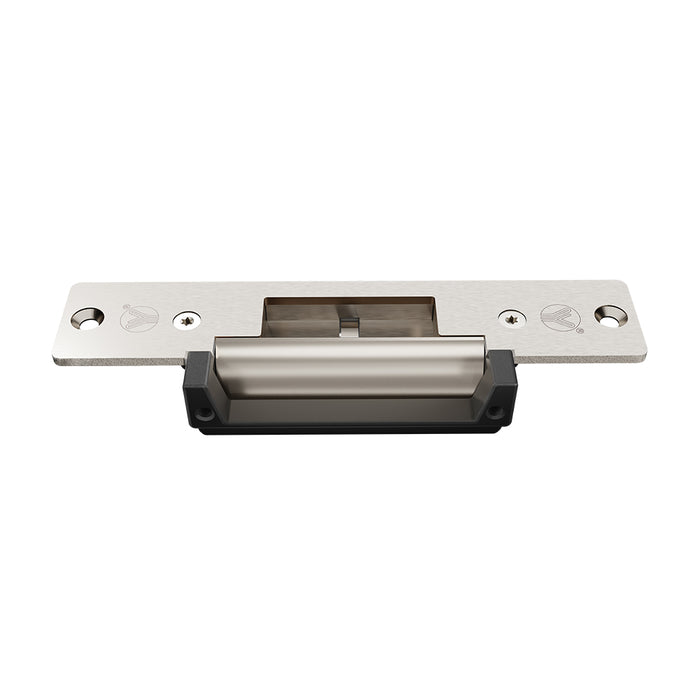

• Keeper: Stainless steel
• Environment: -20°C to +55°C · 0–95% RH
• Protection: Diode surge absorption device
• Optional accessories: YS-305, YS-306 mounting accessories
• Certification: UL 294 & UL 1034

Electrically controlled for daily use, manual override for emergencies. 1-year warranty.
